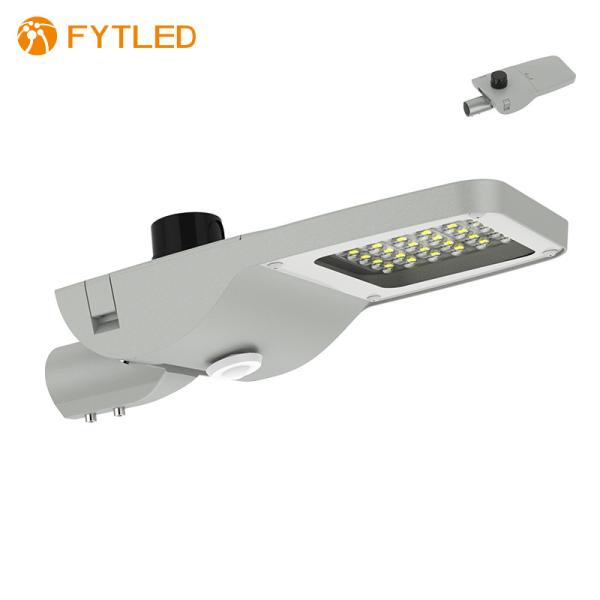

    Industrial CB Certified Nero 50W LED Street Light Easy Installation

    Ask Lasest Price
    Brand Name : FYTLED
    Model Number : T68-50W
    Certification : CB
    Payment Terms : T/T
    Supply Ability : 5000PCS per month
    Delivery Time : 20-25 working days
    • Product Details
    • Company Profile

    Industrial CB Certified Nero 50W LED Street Light Easy Installation

    CB certified Nero street light 50W 5 years warranty quick access to maintenance

    Ranging from 30W to 150W, the Nero T68 street light is an ideal solution for road and street lighting. It offers common beam angles for double carriage ways and triple carriage ways. IP66 approved waterproof performance allows outdoor applications. The maintenance flap provides fast access to the driver compartment for maintenance.


    Advantages:
    • Quick snap lock for fast and convenient access to the driver compartment for easy maintenance e.g. driver replacement
    • ±15° installation angle adjustment(each 5° to max. ±15°) for different light distribution
    • IP66 waterproof performance
    • Dust-free thanks to sleek surface
    • The warranty is 5 years(10 years warranty available)
    • Lumen efficiency reaching 140lm/W

    Options
    • 20KV SPD(10KV SPD included)
    • Electrical disconnector(When lamp is opened for maintenance, the power will be cut off automatically to ensure the safety of the technician)
    • Coating/painting brand "AkzoNobel"(for seashore project)
    • 3pin, 5pin, 7pin NEMA base
    • Microwave motion sensor
    • Photocell daylight sensor and photocontroller
    • 1-10V dimmable and DALI dimmable
    Area of application
    • Road and street

    Basic Specifications
    ModelNominal Wattages (W)Nominal VoltageRated luminous efficacy(lm/w)Nominal luminous flux(lumen)Beam AngleLED QuantityCRI
    T68-30W30WAC100-277V 50~60Hz140±104200±300T2-S
    T3-M
    16pcs 5W EMC5050>70
    T68-40W40W5600±40016pcs 5W EMC5050
    T68-50W50W7000±50016pcs 5W EMC5050
    T68-60W60W8400±60036pcs 5W EMC5050
    T68-80W80W11200±80036pcs 5W EMC5050
    T68-100W100W14000±100048pcs 5W EMC5050
    T68-120W120W16800±120048pcs 5W EMC5050
    T68-150W150W21000±150064pcs 5W EMC5050

    Electrical dataPhotometrical data
    Operating frequency47-63HZAvailable light colorswarm white; natural white; cold white
    Type of currentAC100-277VAvailable color temperatures3000K; 4000K; 5000K; 6000K
    Power factor λ>0.9Color rendering index Ra>70
    Efficiency in %>92%Standard deviation of color matching<5
    Start time (0.2s / 0.5s / … )0.1SUGR (Unified Glare Rating)<27
    Warm-up time to 60 % (1.5s / 2s / … )0.5SAvailable beam anglesTYPE2-S, TYPE3-M

    Standards & CertificationTemperatures & operating conditions
    Type of protectionIP66Heatsink temperature-20~+69℃
    Tested dielectric strength3.75KVacAmbient temperature-30~+40℃
    Safety featuresOpen circuit protectionStorage temperature-40~+80℃
    Short circuit protection
    Overvoltage protection
    CertificatesCB

    LifespanFeatures/Capabilities and additional product data
    Rated nominal Lifetime100.000 hoursBase/SocketDirectly wired
    Switching cycles100,000 timesDimmable1-10V dimmable, DALI dimmable
    Lumen maintenance at e.o.l.80%

    Packing Information
    ModelDimensionCTN SIZE(CM)QTY/CTNNet Weight/pcs(kg)Gross Weight/CTN(kg)
    T68-50W508*180*109MM67*28.5*22.51PCS

    5

    6.6



    FAQ

    1. Q: Where is your target market?

    A: Europe is our main market, followed by North America, Asia, Australia and South America. Our products have key license CE, Rohs, TUV, ENEC, UL, CUL, DLC, SAA and other certifications, I believe it can meet your demands.


    2.Q: What is your MOQ?

    A: As sample order is allowed, the MOQ is 1 piece.


    3.Q: How long is the sample production time?

    A: It takes about 10 working days.


    4.Q: What is the Payment?

    A: For new customers, usually we adopt the T/T, and we have 2 ways:
    1) 100%

    2) 30% advance deposit, the Balance should be paid off before shipment.
    As our cooperation deepens, we can discuss other payment terms


    5.Q:How long is the delivery time?

    A: About 4-5 weeks for qty<200 and 6-8 weeks for 200<qty<500
