    Outdoor RoHS Certified 160lm/W IP65 Street Lights Easy Installation

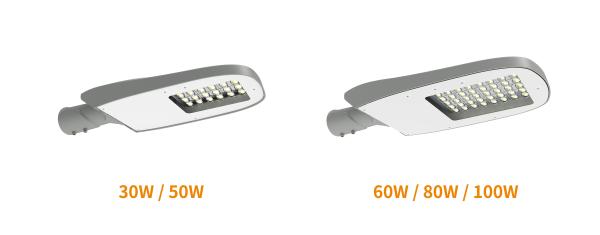

    160lm/W IP66 streetlight 30W-100W 5 years warranty

    The Freedom T67 street light performs excellent in lumen efficieny to spare as much electricity and spending as possible. It ranges from 30W to maximum 100W with common beam angles Type2-S and Type3-M for double carriage ways and triple carriage ways. The IP66 grade allows outdoor applications.


    Features

    • Dust-free thanks to the sleek surface design
    • Up to 160lm/W
    • IP66 approved for outdoor lighting
    • ±15° adjustable installation angle for different light distribution demands(each 5° to maximum ±15°)
    • 5 years warranty

    Options
    • 10KV surge protection device(SPD)
    • Coating/painting brand "AkzoNobel"(for seashore project)
    • 3pin, 5pin, 7pin NEMA base
    • Photocell daylight sensor
    • 1-10V dimmable
    • DALI dimmable
    Area of application
    • Road and street

    Basic Specifications

    ModelNominal Wattages (W)Nominal VoltageRated luminous efficacy(lm/w)Nominal luminous flux(lumen)Beam AngleLED QuantityCRI
    T67-30W30WAC100-277V 50~60Hz140±104200±300T2-S
    T3-M
    24pcs 5W EMC5050>70
    T67-40W40W140±105600±40024pcs 5W EMC5050
    T67-50W50W140±107000±50024pcs 5W EMC5050
    T67-60W60W135±108400±60024pcs 5W EMC5050
    T67-60W60W150±109000±60048pcs 5W EMC5050
    T67-80W80W140±1011200±80048pcs 5W EMC5050
    T68-100W100W140±1014000±130048pcs 5W EMC5050

    Electrical dataPhotometrical data
    Operating frequency47-63HZAvailable light colorswarm white; natural white; cold white
    Type of currentAC100-277VAvailable color temperatures3000K; 4000K; 5000K; 6000K
    Power factor λ>0.95Color rendering index Ra>70
    Efficiency in %>91%Standard deviation of color matching<5
    Start time (0.2s / 0.5s / … )0.1SUGR (Unified Glare Rating)<27
    Warm-up time to 60 % (1.5s / 2s / … )0.5SAvailable beam anglesTYPE2-S, TYPE3-M

    Standards & CertificationTemperatures & operating conditions
    Type of protectionIP66Heatsink temperature-5~+70℃
    Tested dielectric strength3.75KVacAmbient temperature-30~+55℃
    Safety featuresOpen circuit protection;Storage temperature-40~+80℃
    Short circuit protection;
    Overvoltage protection
    CertificatesCE, RoHS
    Energy efficiency classA+&A++

    LifespanFeatures/Capabilities and additional product data
    Rated nominal Lifetime50.000 hoursBase/SocketDirectly wired
    Switching cycles100,000 timesDimmable1-10V dimmable
    Lumen maintenance at e.o.l.70%

    Packing Information
    ModelDimension(MM)CTN SIZE(CM)QTY/CTNNet Weight/pcs(kg)Gross Weight/CTN(kg)
    T67-30W/40W/50W/60W540*200*9060*26*151PCS44.8
    T67-60W/80W/100W600*260*9066*32*151PCS67.2


    FAQ

    1. Q: Where is your target market?

    A: Europe is our main market, followed by North America, Asia, Australia and South America have our customers. Our products have CE, Rohs, TUV, ENEC, UL, CUL, DLC, SAA and other certifications, I believe it can meet your needs.


    2.Q: What is your MOQ?

    A: We support purchasing samples to check the quality. When you buy samples, MOQ is 1pcs.


    3.Q: How long is the sample production time?

    A: About 4-7days. But if you want a special sample, it will need some times to make the mold.


    4.Q: What is the Payment?

    A: For new customers,usually we adopt the T/T, and we have 2 ways:
    1) T/T 100%

    2)30% advance deposit, the Balance should be paid off before shipment.
    As our cooperation deepens, we can discuss other payment terms


    5.Q:How long is the delivery time?

    A:About 10-14 days
