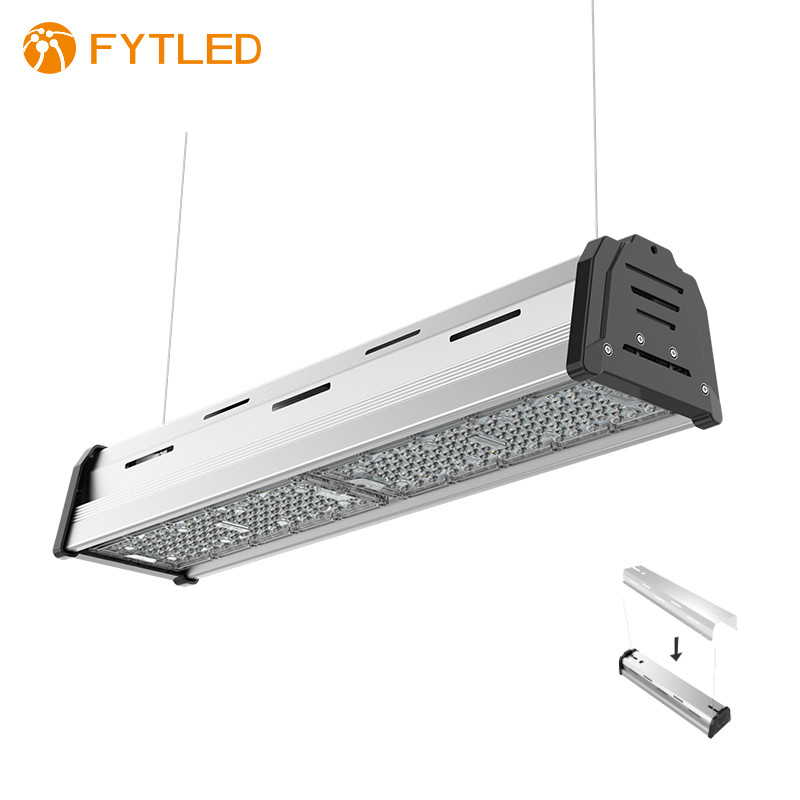

30M INSTALLATION HEIGHTS IP65 30° 60° T31D LINEAR HIGHABY LIGHT

Features

OPTIONS

AREA OF APPLICATION

It was designed for tall halls, high warehouses, loading areas and freight yards.

Basic Specification

Model	Nominal wattages	Nominal voltage	Rated luminous efficacy	Nominal luminous flux	Beam Angle	LED Quantity	CRI
T31D-80W01	80W	AC100~277V 50~60Hz	140±10	11200±800	30°60°90°30*70° 40*130°	112 PCS EMC 3030	>70
T31D-120W02	120W		145±10	17400±1200		224 PCS EMC 3030
T31D-150W02	150W		140±10	21000±1500		224 PCS EMC 3030
T31D-200W03	200W		145±10	29000±2000		336 PCS EMC 3030
T31D-240W03	240W		140±10	33600±2400		336 PCS EMC 3030
T31D-300W04	300W		140±10	42000±3000		448 PCS EMC 3030
Lumen Plus (160lm/W)
Model	Nominal wattages	Nominal voltage	Rated luminous efficacy	Nominal luminous flux	Beam Angle	LED Quantity	CRI
T31D-80W02	80W	AC100~277V 50~60Hz	165±5	13200±400	30°60°90°30*70° 40*130°	224 PCS EMC 3030	>70
T31D-150W03	150W		160±5	24000±750		336 PCS EMC 3030

Electrical data Photometrical data

Operating frequency	47-63HZ	Available light colors	warm white;natural white; daylight white
Type of current	AC100-277V100-350V277-480V	Available color temperatures	3000K;4000K;5000K;6000K
Power factor λ	>0.9	Color rendering index Ra	>70
Efficiency in %	>90%	Standard deviation of color matching	<5
Start time (0.2s / 0.5s / … )	0.1S	UGR (Unified Glare Rating)	<27
Warm-up time to 60 % (1.5s / 2s / … )	0.5S	Available beam angles	30°/60°/90°/30*70°/40*130°

Packing Information

Model	Dimension(MM)	CTN SIZ E(CM)	QT Y/ CT N	Net Weight/pcs(kg)	Gross Weight /CTN(kg)
T31D-80W01	320*145*116	37*34*17	2PCS	2.6	6.8
T31D-80W02/ 120W02/150W02	620*145*116	67*34*17	2PCS	4.2	10.2
T31D-150W03/ 200W03/240W03	920*145*116	97*34*17	2PCS	5.8	14.5
T31D-300W04	1220*145*116	127*34*17	2PCS	7.8	19.5

FAQ

1. Q: Where is your target market?

A: Europe is our main market, followed by North America, Asia, Australia and South America have our customers. Our products have CE, Rohs, TUV, ENEC, UL, CUL, DLC, SAA and other certifications, I believe it can meet your needs.

2. Q: What is your MOQ?

A: We support purchasing samples to check the quality. When you buy samples, MOQ is 1Pcs.

3. Q: How long is the sample production time?

A: About 4-7days. Butif you want a specialsample, it will need some times to make the mold.

4.Q: What is the Payment?

A: For new customers,usually we adopt the T/T, and we have 2 ways:
1) T/T 100%

2) 30% advance deposit, the Balance should be paid off before shipment.
As our cooperation deepens, we can discuss other payment terms

5. Q:How long is the delivery time?

A: About 7 days
