Tomline T10B 2ft LED Industrial High Bay Light Extruded Aluminum For Indoor Sports Field

Shenzhen FYT LED Co., Ltd
Contact Now
    Buy cheap Tomline T10B 2ft LED Industrial High Bay Light Extruded Aluminum For Indoor Sports Field from wholesalers

    Buy cheap Tomline T10B 2ft LED Industrial High Bay Light Extruded Aluminum For Indoor Sports Field from wholesalers
    • Buy cheap Tomline T10B 2ft LED Industrial High Bay Light Extruded Aluminum For Indoor Sports Field from wholesalers
    • Buy cheap Tomline T10B 2ft LED Industrial High Bay Light Extruded Aluminum For Indoor Sports Field from wholesalers
    • Buy cheap Tomline T10B 2ft LED Industrial High Bay Light Extruded Aluminum For Indoor Sports Field from wholesalers

    Tomline T10B 2ft LED Industrial High Bay Light Extruded Aluminum For Indoor Sports Field

    Ask Lasest Price
    Brand Name : FYTLED
    Model Number : T10B
    Certification : UL, DLC, FCC,TUV, ENEC, CB, CE(EMC,LVD), RoHS, C-TICK, SAA, RCM
    Price : 56USD-83USD/piece
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2000pcs per week
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Tomline T10B 2ft LED Industrial High Bay Light Extruded Aluminum For Indoor Sports Field

    High efficiency Energy Saving Tomline T10B Extruded Aluminum Linear LED Hig Bay IK10 for Indoor Sports Field


    Our T10B linear high bay light was specially designed for use in industrial environments. Due to a massive aluminum heat sink and high quality components this product was built to last for many years. The enormous light output and the high efficiency make this high bay an ideal replacement for all sorts of traditional industrial lamps. This extremely robust industrial light is available in three versions: standard, Lumen-Plus and dust-free version. All versions can be used in all areas where an IP grade up to IP65 is needed. Thanks to the large polycarbonate cover and the high quality LED chips the illumines distribution is perfectly homogeneous.

    Features


    - Extremely energy efficient - up to real 150 lm/w
    - Excellent heat dissipation performance
    - High color fidelity through CRI 80Ra
    - Perfectly suitable for industrial use due to IP65
    - D-Mark tested for the use in paper production, wood processing etc.
    - 5 Years warranty

    OPTIONS


    - Optional Mean well driver available
    - CRI 90 Ra available upon request
    - 1-10V dimmable and DALI available
    - Microwave motion sensor available
    - Optional emergency power supply
    BENIFITS
    - Replacement for HID and HIP 250W-400W highbay light
    - Energy saving over 50%
    - Uniform light distribution

    AREA OF APPLICATION


    Factories and warehouses
    High rooms and halls
    Exhibition- & showrooms
    Suitable for outdoor use

    PRODUCT SPECIFICATIOM


    Specification for T10B Tomline Linear High Bay

    General

    Information

    Product TypeLinear high bay
    Product Size605*135*72mm, 905*135*72mm, 1205*135*72mm
    Electric parameterDriver BrandTomcarline/Meanwell HBG Series
    Input VoltageAC90-305V/50-60Hz
    Power100W/150W/200W/240W
    PF>0.95
    Optical ParameterLED BrandLumileds 3030
    CRI>80
    Color Temperature (CCT)3000K-6000K
    Luminous Fluxup to 31000lm
    Luminous Efficiency155lm/w
    Beam angle120°
    OthersLifetime50,000Hr
    Operating temperature-40℃~50℃
    Warranty5 years
    MaterialsExtruded aluminum housing, PC cover
    InstallationSuspending
    ApplicationWarehoues, factory workshop, exhibition room etc.

    CERTIFICATIONS
    American market: UL, DLC Premium, cUL
    European market: TUV, GS,CB,CE (EMC, LVD, RoHS), D-Mark
    Australian market: SAA, C-Tick,RCM

    PACKING
    2pcs per carton: 1 piece in each inner box, and two inner box in one carton.
    ModelDimension(mm)CTN Size(cm)QTY/CTNN.W/pc (kg)G.W/CTN (kg)
    T10B-100W605*135*7266*28*182 pcs3.58.3

    T10B-150W

    905*135*7296*28*182 pcs4.610.8
    T10B-200W/240W1205*135*72125*28*182 pcs5.7

    13.8


    INCLUDED MOUNTING ACCESSORY
    (Surface mounting bracket is optional)
    OPTIONAL ACCESSORIES
    0-10V and DALI dimmable driver
    Surface mounting bracket with ±60° angle adjustment
    Emergency battery pack
    IP65 junction box
    IP65 Microwave motion sensor
    Zigbee control and gateway
    DELIVERY TIME
    5-7 days for sample
    4-5 weeks for main order

    FAQ


    1. Q: Where is your target market?

    A: Europe is our main market, followed by North America, Asia, Australia and South America have our customers. Our products have CE, Rohs, TUV, ENEC, UL, CUL, DLC, SAA and other certifications, I believe it can meet your needs.


    2.Q: What is your MOQ?

    A: We support purchasing samples to check the quality. When you buy samples, MOQ is 1Pcs.

    3.Q: How long is the sample production time?

    A: About 4-7days. Butif you want a specialsample, it will need some times to make the mold.


    4.Q: What is the Payment?

    A: For new customers,usually we adopt the T/T, and we have 2 ways:
    1) T/T 100%

    2)30% advance deposit, the Balance should be paid off before shipment.
    As our cooperation deepens, we can discuss other payment terms


    5.Q:How long is the delivery time?

    A:About 7 days

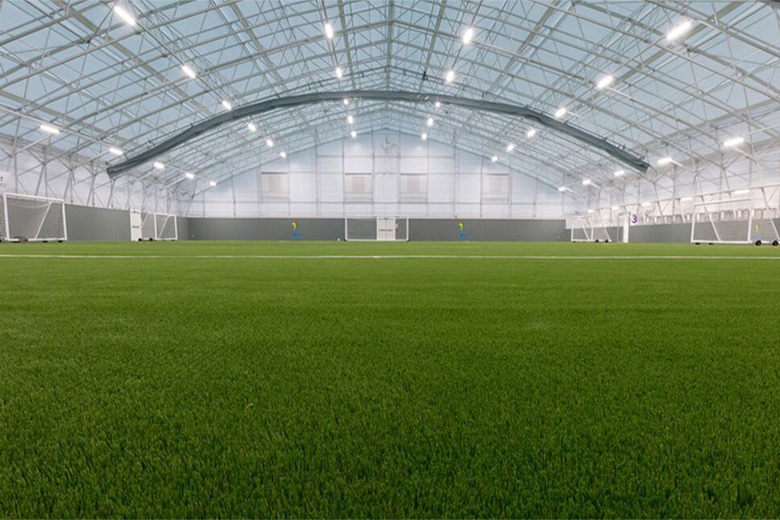

    PROJECT PICTURE
