    9600LM PIR Motion Sensor Linear LED High Bay Lights , High Bay Emergency Lighting

    Ask Lasest Price
    Brand Name : FYTLED
    Model Number : T109-60W
    Certification : CE-LVD, RoHS
    Price : USD20-100/PCS
    Payment Terms : T/T
    Delivery Time : 3-8 work days
    • Product Details
    • Company Profile

    9600LM PIR Motion Sensor Linear LED High Bay Lights , High Bay Emergency Lighting

    LINEAR HIGH BAY LIGHT SKYLINE G3 T109 60W EXTRUDED ALUMINUM HOUSING EXCELLENT HEAT DISSIPATION


    The Skyline G3 high bay was specially designed for different kinds of environments. The anodized aluminum housing makes the lamp high
    corrosion resistant, Large milky PC cover provides soft and wide light distribution.

    Features


    • 60W
    • High luminous flux for 60W is 9600 lumens

    OPTIONS

    • 1-10V dimmable driver

    PIR motion sensor

    • Emergency driver available

    • 277-480V available
    • 10KV SPD

    AREA OF APPLICATION

    • Factories and warehouses
    • High rooms and halls
    • Exhibition & showroom
    Specifications
    Model No.T109-60W04
    Power Consumption40W-60W Adjustable
    Product Dimension402*158*92(mm)
    Efficiency130±10lm/w
    Luminous Flux (±10%)7800 ±600lm
    LED Quantity240 PCS (SMD 2835)
    High Efficiency160±10lm/w
    Luminous Flux (±10%)9600±600lm
    LED Quantity225 PCS (SMD 2835)
    CCT3000K;4000K;5000K;6000K
    Ingress ProtectionIP42
    Color Rendering IndexRa> 80
    Beam Angle110°
    Driver BrandTOMCARLINE (MW or other brand optional)
    Input VoltageAC100-277V
    Power Factor>0.95
    Frequency47-63HZ
    Driver TypeConstant Current (CC)
    Luminaire Net Weight2.3kg
    Packing Information2PCS/CTN
    Export Carton Size48*38*15(cm)
    Gross Weight6kg
    MaterialHousingAluminum Alloy
    OpticsPC milky cover
    FinishPowder Coating
    Fixture ColorSilver
    Mounting OptionSurface mounting/ Hanging rope installation
    Ambient Temperature-30~+45
    Life Time50.000 hours
    Warranty5 Years
    Dimmable1-10V dimmable, DALI dimmable
    Intelligent Control12V Plug-and-Play PIR or Microwave motion sensor/ ZIGBEE
    Optional Accessories1-10V/ DALI driver
    Emergency power supply
    High voltage power supply(277-480V)
    Ceiling mounted / Suspending ropes
    10KV SPD/ 20KV SPD
    CRI> 90
    PC clear cover

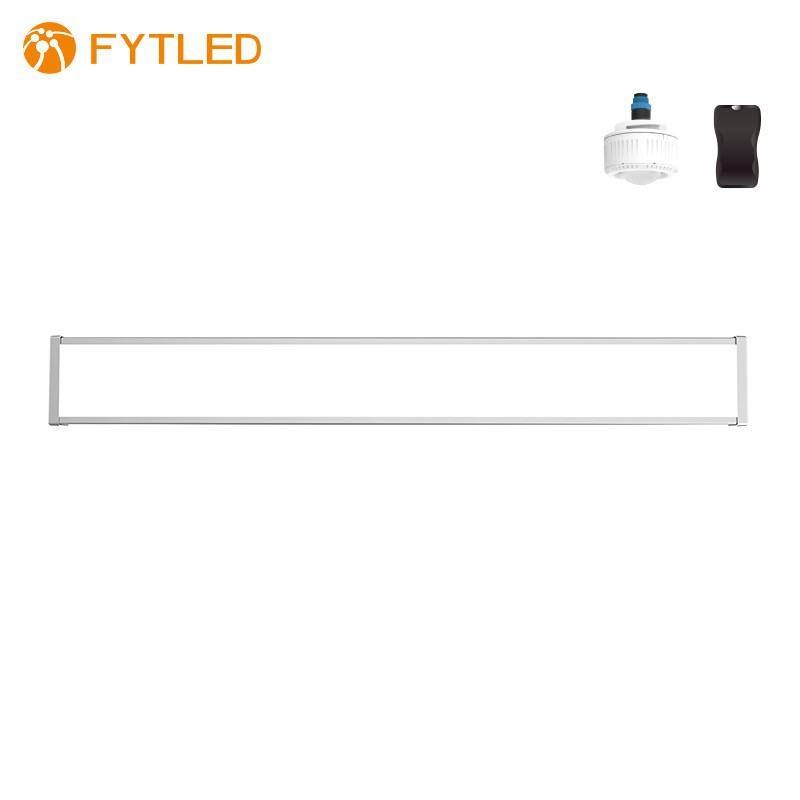

    Picture:

    9600LM PIR Motion Sensor Linear LED High Bay Lights , High Bay Emergency Lighting

    FAQ


    FYTLED was founded in 2008, has more than 12 years experience in R&D, manufacturing and marketing in LED industry.


    As a national Hi-tech enterprise, FYTLED has over 300 well trained employees and over 100,000 sq ft workshop.


    All activities from material purchasing to shipment are strictly controlled under ISO9001, ISO10004 system.


    The outstanding advantages of FYTLED that we have over 10 years experience R&D and manufacturing our own brand Tomcarline LED drivers, and also the die-casting factory running already while rare LED company can have the strength to own the major parts by ourself.
