    Linear 30 Degree 900mm Dimmable LED High Bay Lights Fixtures

    Ask Lasest Price
    Brand Name : FYTLED
    Model Number : 3103
    Certification : CE-LVD RoHS
    Price : USD22-120/PCS
    Payment Terms : T/T, D/P, L/C
    Delivery Time : 2-15 work days
    • Product Details
    • Company Profile

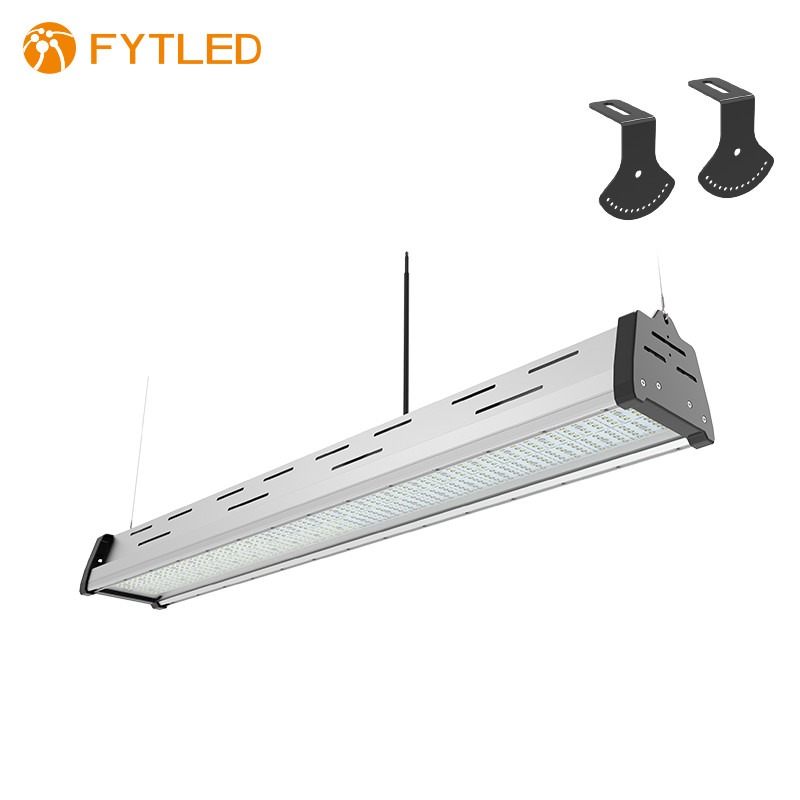

    Linear 30 Degree 900mm Dimmable LED High Bay Lights Fixtures

    ALUMINUM HOUSING TEMPERED GLASS 200W 900MM 3103 LINEAR HIGHBAY LIGHT


    The Starline Extra 3103 linear high bay is a powerful and energy-efficient
    LED light fixture available from 80W to 300W.

    Features

    140W-200W Adjustable
    30000±2000lm
    150±10lm/W
    • 30°, 90°, 40*130° Beam Angle, more options available
    • 5 years warranty

    Options Available:
    1-10V/ DALI DRIVER
    SURFACE MOUNTING BRACKET
    CRI >80/ 90 OPTIONAL
    WIRE GUARD
    Specifications
    Model No.3103-200W09
    Power Consumption140W-200W Adjustable
    Product Dimension875*168*133(mm)
    Efficiency150±10lm/W
    Luminous Flux (±10%)30000±2000lm
    LED Quantity448 PCS (EMC 3030)
    CCT3000K;4000K;5000K;6000K
    Ingress ProtectionIP65
    Color Rendering IndexRa>70
    Beam Angle30°/60°/90°/120°/40*130°/90*120°
    Driver BrandTOMCARLINE(MW or other brand optional)
    Input VoltageAC100-277V100-350V277-480V
    Power Factor>0.9
    Frequency47-63HZ
    Driver TypeConstant Current (CC)
    Luminaire Net Weight8.8kg
    Packing Information2PCS/CTN
    Export Carton Size95*41*19(cm)
    Gross Weight20.5kg
    MaterialHousingAluminum Alloy
    OpticsTempered Glass+ Lens
    FinishPowder Coating
    Fixture ColorSilver+Black
    Mounting OptionSurface mounting/ Suspending ropes installation
    Ambient Temperature-30~+45℃
    Life Time50.000 hours
    Warranty5 Years
    Dimmable1-10V dimmable, Dali dimmable
    Optional Accessories1-10V/ DALI driver
    Surface mounting bracke
    CRI >80/ 90 optional
    Wire guard

    Linear 30 Degree 900mm Dimmable LED High Bay Lights Fixtures
