    Aluminum 120W SMD3030 Commercial LED Wall Pack Convenient Installation

    Ask Lasest Price
    Brand Name : FYTLED
    Model Number : WP2-30W
    Certification : CE, RoHS
    Price : $30-63/pcs
    Delivery Time : 6-9 working days
    • Product Details
    • Company Profile

    Aluminum 120W SMD3030 Commercial LED Wall Pack Convenient Installation

    LED Wall Pack Light with different sensor options

    This new improved Wall pack light combines energy-efficiency, advanced optical control, and modern slim profile aesthetics to deliver enhanced performance to outdoor wall-mount lighting applications. Rugged die-cast housing provides advanced thermal management for long life and weather-proof compartment to withstand challenging, outdoor environments.


    Features
    Very High efficiency - up to 160lm/w
    Very high Luminous flux- up to 18000lm
    Flicker free drivers for models above 50W
    Easy and convenient installation
    Clip-on structure, easy maintance for driver
    Durable die-cast aluminum housing
    UV-resistant PC Optics
    TYPE3/TYPE4/TYPE5 optical distribution (more optical lens options upon request)
    IP65 high grade waterproof protection


    Options
    Optional PHOTOCELL and Daylight PHOTOCONTROLLER
    Microwave motion sensor option
    CRI 80 Ra available
    IP66 protection upon request
    Area of application
    Outdoor wall-mount applications:
    building facade, commercial, industrial, retail,
    hospitality buildings that demand long service life and low maintenance.
    Specifications
    General InformationProduct TypeLED Wall Pack Light
    Product Size9.18"X9.22"X7.43", 11.11"X10.75"X7.82"
    Product ColorBronze, or custom
    Electric parameterInput VoltageAC100-277V & AC277-480V /50-60Hz
    Power30W,40W,60W, 80W, 100W, 120W
    PF>0.9
    Driver BrandTomcarline/Meanwell or other famious brand
    Optical ParameterLEDEMC3030
    CRI>70,or 80 options
    Color Tempearture (CCT)3000-6000K
    Luminous Efficiency160lm/w
    Beam angleTYPE3 / TYPE5
    Standards & CertificationType of protectionIP65
    Tested dielectric strength3.75KVac
    Safety featuresOpen circuit protection;
    short circuit protection ;
    overvoltage protection
    CertificatesCE, RoHS, UL
    Energy efficiency classA+ & A++
    Temperatures & operating conditionsHeatsink temperature5~+70℃
    Ambient temperature-30~+55℃
    Storage temperature-40~+80℃
    OthersLifetime50,000Hr
    Warranty5 years
    MaterialsAL housing+PC lens +AL board
    ApplicationOutdoor wall-mount applications:
    building facade, commercial, industrial, retail,
    hospitality buildings that demand long service life and low maintenance

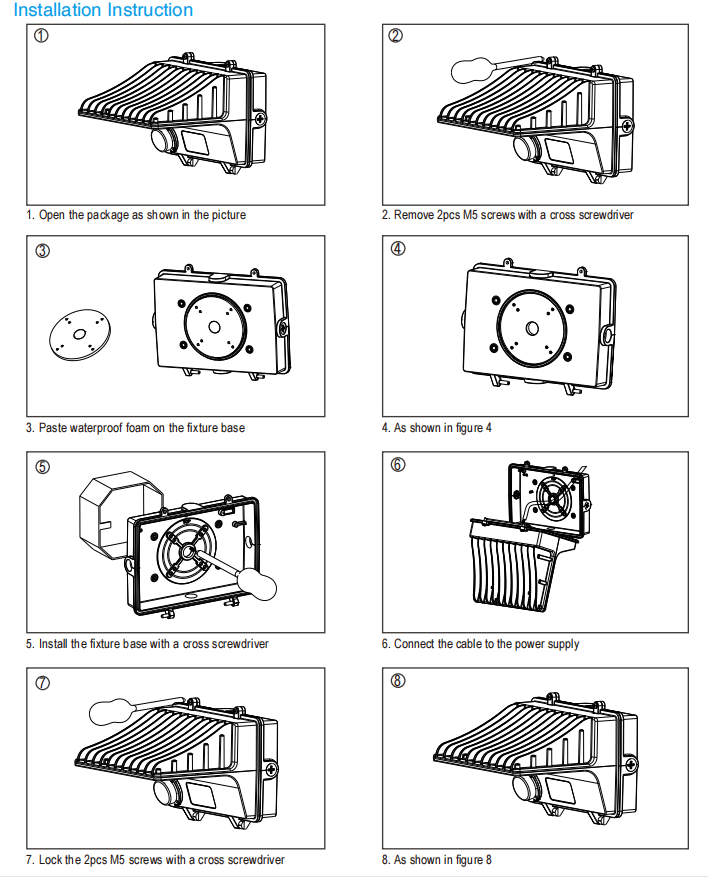

    Picture:

    Why choose us?
    1.Your inquiry related to our products or prices will be replied in 12 hours.
    2.Welcome to visit our factory to check the production process.
    3.We always try our best to save the manufacture cost in order to give you super high quality
    with the resonable price.
    4.Well-trained and experienced staffs to answer all your inquiries in fluent English.
    5.Distributer-ship are offered for your unique design and some our current models.
    6.Trial order with small quantities is available for our first cooperation and we can also provide
    you with wholesale price;
