    Dust Free IP66 Street Lights

    Ask Lasest Price
    Brand Name : FYTLED
    Model Number : T68-60W
    Certification : SAA, RCM
    Payment Terms : T/T, L/C
    Supply Ability : 5000PCS per month
    Delivery Time : 20-25 working days
    • Product Details
    • Company Profile

    Dust Free IP66 Street Lights

    140lm/W dust-free 60W street light easy maintenance IP66 SAA

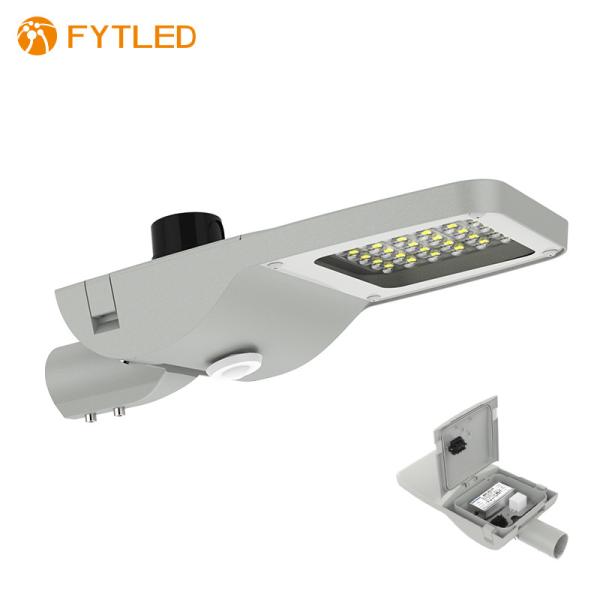

    The Nero T68 street light is an ideal solution for road and street lighting. It is available from 30W to maximum 150W, which offers common beam angles T2-S and T3-M for double carriage ways and triple carriage ways. 5 years warranty is default and 10 years warranty is optional.


    Product keypoints:
    • Maintenance flap for quick access to the independent driver compartment for maintenance(i.e. driver replacement)
    • ±15° installation angle adjustment(each 5° to max. ±15°)
    • Excelllent waterproof performance IP66
    • Dust-free thanks to sleek surface design
    • 5 or 10 years warranty
    • Lumen efficiency up to 140lm/W(EMC 5050 led chips)

    Options
    • Surge protection device(SPD) 20KV(10KV SPD is included without additional charge)
    • Curcuit interrupter(The power will be cut off automatically to ensure the safety of the technician under maintenance work)
    • Coating brand "AkzoNobel"(for seashore projects)
    • Class II optional
    • 3pin, 5pin, 7pin NEMA base
    • Microwave motion sensor, Photocell daylight sensor and photocontroller
    • 1-10V dimmable and DALI dimmable
    Area of application
    • Road and street

    Basic Specifications
    ModelNominal Wattages (W)Nominal VoltageRated luminous efficacy(lm/w)Nominal luminous flux(lumen)Beam AngleLED QuantityCRI
    T68-30W30WAC100-277V 50~60Hz140±104200±300T2-S
    T3-M
    16pcs 5W EMC5050>70
    T68-40W40W5600±40016pcs 5W EMC5050
    T68-50W50W7000±50016pcs 5W EMC5050
    T68-60W60W8400±60036pcs 5W EMC5050
    T68-80W80W11200±80036pcs 5W EMC5050
    T68-100W100W14000±100048pcs 5W EMC5050
    T68-120W120W16800±120048pcs 5W EMC5050
    T68-150W150W21000±150064pcs 5W EMC5050

    Electrical dataPhotometrical data
    Operating frequency47-63HZAvailable light colorswarm white; natural white; cold white
    Type of currentAC100-277VAvailable color temperatures3000K; 4000K; 5000K; 6000K
    Power factor λ>0.9Color rendering index Ra>70
    Efficiency in %>92%Standard deviation of color matching<5
    UGR (Unified Glare Rating)<27

    Standards & CertificationTemperatures & operating conditions
    Type of protectionIP66Heatsink temperature-20~+69℃
    Tested dielectric strength3.75KVacAmbient temperature-30~+40℃
    Safety featuresOpen circuit protectionStorage temperature-40~+80℃
    Short circuit protection
    Overvoltage protection
    CertificatesENEC, CB, CE, RoHS, SAA, RCM
    Energy efficiency classA++

    LifespanFeatures/Capabilities and additional product data
    Rated nominal Lifetime100.000 hoursBase/SocketDirectly wired
    Switching cycles100,000 times
    Lumen maintenance at e.o.l.80%

    Packing Information
    ModelDimensionCTN SIZE(CM)QTY/CTNNet Weight/pcs(kg)Gross Weight/CTN(kg)
    T68-60W558*258*105MM67*34.5*22.51PCS6.78.5



    FAQ

    1. Q: Where is your target market?

    A: Europe is our main market, followed by North America, Asia, Australia and South America. Our products are qualified necessary certifications including CE, Rohs, TUV, ENEC, UL, CUL, DLC, SAA, etc..


    2.Q: What is your MOQ?

    A: It's allowed to place sample order to evaluate the product quality and performance. MOQ is 1 unit for sample order.


    3.Q: How long is the sample production time?

    A: It takes about 10 days for delivery.


    4.Q: What is the Payment?

    A: For new customers,usually we adopt the T/T, and we have 2 ways:
    1) 100%

    2) 30% advance deposit, the Balance should be paid off before delivery.
    As our cooperation deepens, we can discuss further about the payment terms


    5.Q:How long is the delivery time?

    A: The delivery time is around 4-5 weeks for qty<200 and 6-8 weeks for 200<qty<500
