    15500lm Industrial Warehouse Lighting

    Ask Lasest Price
    Brand Name : FYT LED
    Model Number : T10B-100W
    Certification : ETL, DLC, CE, RoHS
    Price : 56USD-83USD/piece
    Payment Terms : L/C, T/T, Paypal
    Supply Ability : 12000pcs per week
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    15500lm Industrial Warehouse Lighting

    2020 T10B Tomline linear high bay 100W 15500lm pure aluminum Tomcarline LED driver pendant tube highbay 5 years warranty


    T10B linear high bay light was specially designed for use in industrial environments. Due to a massive aluminum heat sink and high quality components this product was built to last for many years. The enormous light output and the high efficiency make this high bay an ideal replacement for all sorts of traditional industrial lamps. This extremely robust industrial light is available in three versions: standard, Lumen-Plus and dust-free version. All versions can be used in all areas where an IP grade up to IP65 is needed. Thanks to the large polycarbonate cover and the high quality LED chips the illumines distribution is perfectly homogeneous.


    Main Features


    -135lm/W standard (155 lm/w selectable)
    -Good cooling due to pure aluminum housing
    -IP65 and IK10
    -CRI 80 natural color presentation
    -D-Mark tested for the use in paper production, wood processing etc.

    OPTIONS


    -Meanwell driver available
    -CRI 90 Ra available upon request
    -1-10V dimmable and DALI, DMX dimmable
    -Microwave motion sensor
    -Emergency power supply

    AREA OF APPLICATION


    -Factories and warehouses
    -Food processing workshop
    -Super market
    -Indoor sports field

    CERTIFICATIONS
    American market: UL, cUL, DLC Premium
    European market: TUV, GS,CB,CE, RoHS
    Australian market: SAA, C-Tick

    PRODUCT SPECIFICATIOM


    Specification for T10B Tomline Linear High Bay

    General

    Information

    Product TypeFood Processing Linear high bay
    Product Size605*135*72mm, 905*135*72mm, 1205*135*72mm
    Electric parameterDriver BrandTomcarline/Meanwell HLG Series
    Input VoltageAC90-305V/50-60Hz
    Power100W/150W/200W/240W
    PF>0.95
    Optical ParameterLED BrandLumileds 3030
    CRI>80
    Color Temperature (CCT)3000K-6000K
    Luminous Fluxup to 31000lm
    Luminous Efficiency155lm/w
    Beam angle120°
    OthersLifetime50,000Hr
    Operating temperature-40℃~50℃
    Warranty5 years
    MaterialsExtruded aluminum housing, PC cover
    InstallationSuspending
    ApplicationWarehoues, factory workshop, exhibition room, food factory etc.


    PACKING
    2pcs per carton: 1 piece in each inner box, and two inner box in one carton.
    ModelDimension(mm)CTN Size(cm)QTY/CTNN.W/pc (kg)G.W/CTN (kg)
    T10B-60W/100W605*135*7266*28*182 pcs3.58.3

    T10B-150W

    905*135*7296*28*182 pcs4.610.8
    T10B-200W1205*135*72125*28*182 pcs5.7

    13.8

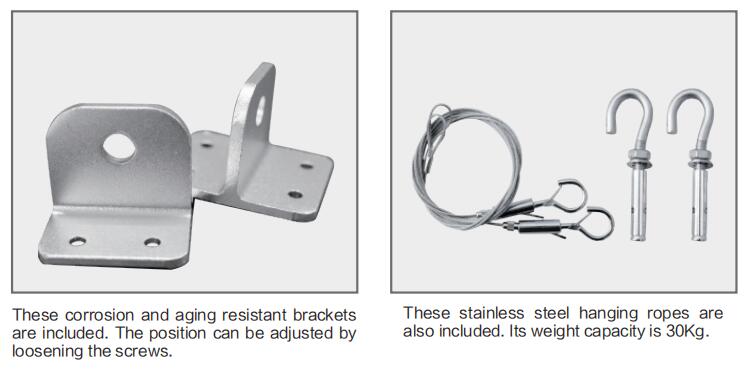

    INCLUDED MOUNTING ACCESSORY
    (Surface mounting bracket is optional)
    OPTIONAL ACCESSORIES
    0-10V and DALI dimmable driver
    Surface mounting bracket with ±60° angle adjustment
    Emergency battery pack
    IP65 junction box
    IP65 Microwave motion sensor
    Zigbee control and gateway

    FAQ


    1,Prices conditions
    Price can be FOB, CIF ,EXW, or With taxes


    2,What will be the delivery time and what will be the mode of payment?
    About 4-7days. But if you want a special sample, it will need some times to make the mold.

    The payment can be T/T transaction,Letter of credit,Paypal,Western Union


    3,Could you please send me the sample for the same.So that i could see and analyze its quality?
    Yes.We can send samples first,samples need to be charged if the value is higher. According to some certain project, we can also provide free sample for testing.


    4,Will there be any contract for this business or trade?
    Yes,there is a normal PI before the order is placed.


    DELIVERY TIME
    5-7 days for sample
    4-5 weeks for main order

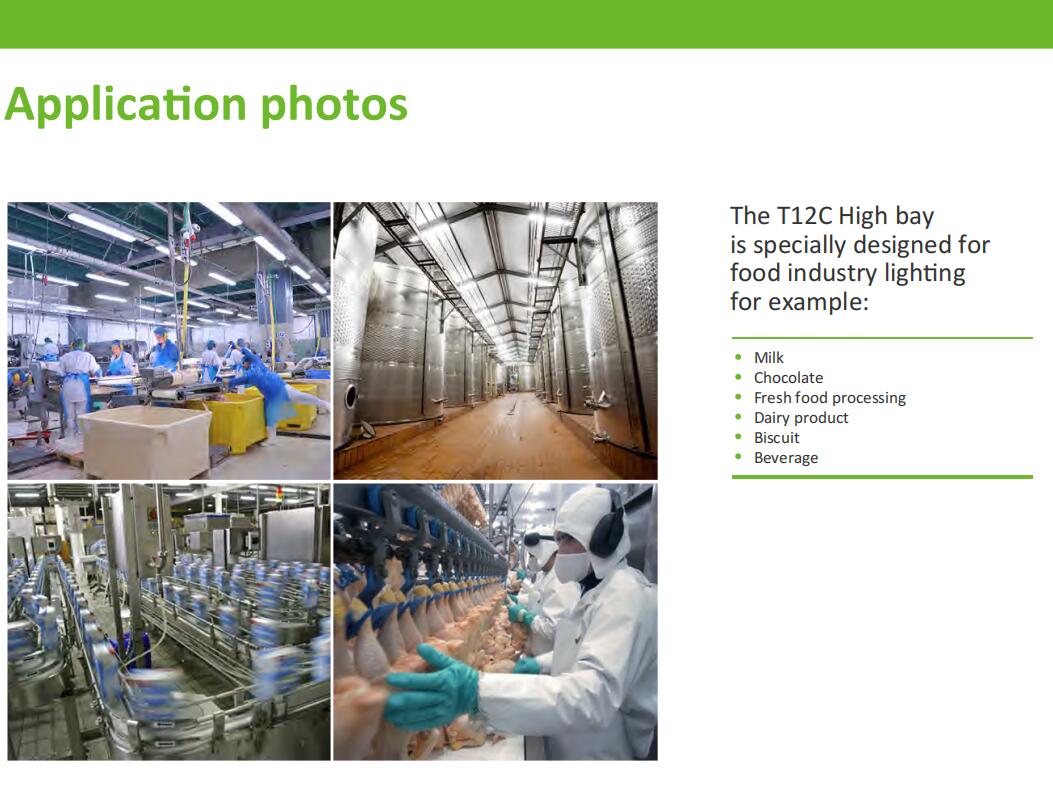

    PROJECT PICTURE
