    Waterproof Anti Corrosion 160lm/W Commercial Street Lights 100W

    Ask Lasest Price
    Brand Name : FYTLED
    Model Number : T67
    Certification : CE, RoHS
    Payment Terms : T/T
    Supply Ability : 5000PCS per month
    Delivery Time : 20-25 working days
    • Product Details
    • Company Profile

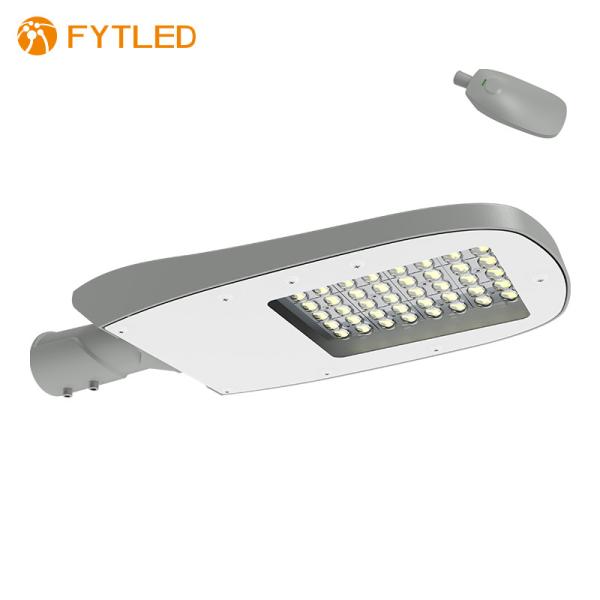

    Waterproof Anti Corrosion 160lm/W Commercial Street Lights 100W

    160lm/W street light 100W sleek surface design ±15° adjustable installation angle

    The Freedom T67 street light is ideal solution for road and street lighting thanks to excellent performance in lumen efficiency to save energy consumption and spendings. Ranging from 30W to 100W, it provides common beam angle T2-S and T3-M for double carriage ways and triple carriage ways. The waterproof performance is IP66, which allows outdoor application.


    Features

    • Sleek surface(top side) for dust-free
    • Lumen efficiency 160lm/W
    • IP66 waterproof performance
    • Each 5° to maximum 15°(up/down) for various light distribution
    • 5 years warranty

    Options
    • 10KV SPD
    • Corrosion-resistant coating brand "AkzoNobel" for seashore project
    • 3pin, 5pin, 7pin NEMA base
    • Photocell daylight sensor
    • 1-10V dimmable
    • DALI dimmable
    Area of application
    • Road and street

    Basic Specifications

    ModelNominal Wattages (W)Nominal VoltageRated luminous efficacy(lm/w)Nominal luminous flux(lumen)Beam AngleLED QuantityCRI
    T67-30W30WAC100-277V 50~60Hz140±104200±300T2-S
    T3-M
    24pcs 5W EMC5050>70
    T67-40W40W140±105600±40024pcs 5W EMC5050
    T67-50W50W140±107000±50024pcs 5W EMC5050
    T67-60W60W135±108400±60024pcs 5W EMC5050
    T67-60W60W150±109000±60048pcs 5W EMC5050
    T67-80W80W140±1011200±80048pcs 5W EMC5050
    T68-100W100W140±1014000±130048pcs 5W EMC5050

    Electrical dataPhotometrical data
    Operating frequency47-63HZAvailable light colorswarm white; natural white; cold white
    Type of currentAC100-277VAvailable color temperatures4000K 6000K
    Power factor λ>0.95Color rendering index Ra>70
    Efficiency in %>91%

    Standards & CertificationTemperatures & operating conditions
    Type of protectionIP66Heatsink temperature-5~+70℃
    Tested dielectric strength3.75KVacAmbient temperature-30~+55℃
    Safety featuresOpen circuit protectionStorage temperature-40~+80℃
    Short circuit protection
    Overvoltage protection

    LifespanFeatures/Capabilities and additional product data
    Rated nominal Lifetime50.000 hoursBase/SocketDirectly wired
    Switching cycles100,000 times
    Lumen maintenance at e.o.l.70%

    Packing Information
    ModelDimension(MM)CTN SIZE(CM)QTY/CTNNet Weight/pcs(kg)Gross Weight/CTN(kg)
    T67-100W600*260*9066*32*151PCS67.2


    FAQ

    1. Warranty: most items enjoy 5 years warranty, some reach 10 years warranty.


    2. R&D team: 20 qualified engineers to support product development(3 to 5 new product are luanched quarterly) and ODM.


    3. Qualifications: ISO9001 and ISO14001; China Hi-tech enterprise(over 40 patents achieved).


    4. Factories: ① FYT LED(parent company) for LED lights since 2008; ② Tomcarline(subsidiary) for LED power driver since 2011; ③ JYT LED(subsidiary) for aluminum heatsink since 2019.


    5. MOQ: ≥1pc(sample for evaluation)
