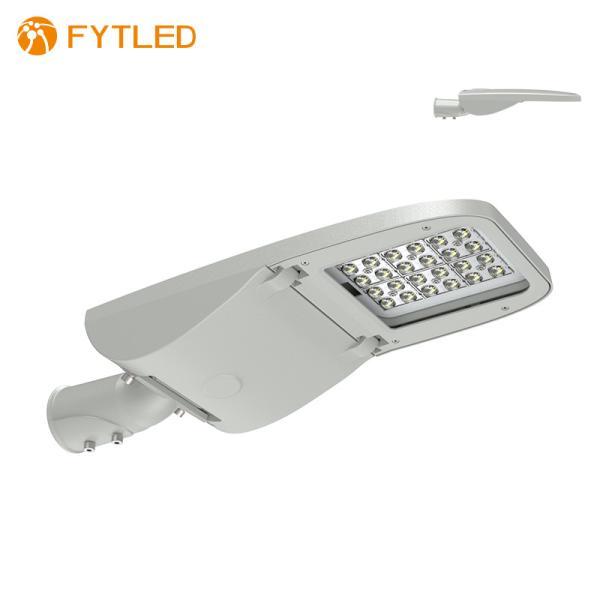

    TUV Certified 60W Outdoor Street Light With Microwave Motion Sensor

    Ask Lasest Price
    Brand Name : FYTLED
    Model Number : T68B-60W
    Certification : TUV
    Payment Terms : T/T, L/C
    Supply Ability : 5000PCS per month
    Delivery Time : 20-25 working days
    • Product Details
    • Company Profile

    TUV Certified 60W Outdoor Street Light With Microwave Motion Sensor

    60W street light T2-S T3-M ENEC IP66 tool-free access to maintenance

    ENEC certified Nero Pro T68B street light is cost-effective solution for street and road lighting. It ranges from 30W to maximum 240W, allowing easy maintenance thanks to the tool-free access design. 140lm/W is able to achieve energy-saving. Beam angles are T2-S and T3-M for double carriage ways and triple carriage ways.


    Product features
    • Easy maintenance(i.e. driver replacement)
    • Adjustable installation angle ±15° for various light distribution
    • IP66 approved for outdoor application
    • 5 years warranty
    • Lumen efficiency 140lm/W

    Options
    • 10KV and 20KV surge protection device(SPD)
    • Circuit interrupter(power will be cut off automatically to ensure the safety of the technician under maintenance work)
    • Corrosion-resistant coating brand "AkzoNobel"(for seashore project)
    • Class II
    • 3pin, 5pin, 7pin NEMA base
    • Microwave motion sensor
    • photocell daylight sensor and photocontroller
    • 1-10V dimmable
    • DALI dimmable
    Area of application
    • Road and street

    Basic Specifications

    ModelNominal Wattages (W)Nominal VoltageRated luminous efficacy(lm/w)Nominal luminous flux(lumen)Beam AngleLED QuantityCRI
    T68B-30W30WAC100-277V 50~60Hz140±104200±300T2-S
    T3-M
    12pcs 5W EMC5050>70
    T68B-40W40W5600±40012pcs 5W EMC5051
    T68B-50W50W7000±50012pcs 5W EMC5052
    T68B-60W60W8400±60024pcs 5W EMC5050
    T68B-80W80W11200±80024pcs 5W EMC5050
    T68B-100W100W14000±100036pcs 5W EMC5050
    T68B-120W120W16800±120048pcs 5W EMC5050
    T68B-150W150W21000±150048pcs 5W EMC5050
    T68B-180W180W25200±180080pcs 5W EMC5050
    T68B-240W240W33600±240080pcs 5W EMC5050

    Electrical dataPhotometrical data
    Operating frequency47-63HZAvailable light colorswarm white; natural white; cold white
    Type of currentAC100-277VAvailable color temperatures3000K; 4000K; 5000K; 6000K
    Power factor λ>0.9Color rendering index Ra>70
    Efficiency in %>92%

    Standards & CertificationTemperatures & operating conditions
    Type of protectionIP66Heatsink temperature-20~+69℃
    Tested dielectric strength3.75KVacAmbient temperature-30~+50℃
    Safety featuresOpen circuit protectionStorage temperature-40~+80℃
    Short circuit protection
    Overvoltage protection

    LifespanFeatures/Capabilities and additional product data
    Rated nominal Lifetime5 yearsBase/Socket42 60 76
    Switching cycles100,000 times

    Packing Information
    ModelDimensionCTN SIZE(CM)QTY/CTNNet Weight/pcs(kg)Gross Weight/CTN(kg)
    T68B-60W575*215*125MM69*29*221PCS5.126.25


    Why choose us?

    1. Warranty: most items enjoy 5 years warranty, some reach 10 years warranty.


    2. R&D team: 20 qualified engineers to support product development(3~5 new products are released quarterly) and ODM.


    3. Qualifications: ISO9001 and ISO14001; China Hi-tech enterprise(over 40 patents achieved).


    4. Factories: ① FYT LED(parent company) for LED lights; ② Tomcarline(subsidiary) for LED power driver; ③ JYT LED(subsidiary) for aluminum heatsink.


    5. MOQ: ≥1pc(sample for evaluation)
